| NAFEMS | SOILD CYLINDER / TAPER / SPHERE - TEMPERATURE | Test No LE11 | Date/Issue 1990-06-15/2 |
| ORIGIN | NAFEMS report LSB2 |
| ANALYSIS TYPE | Linear elastic solid |

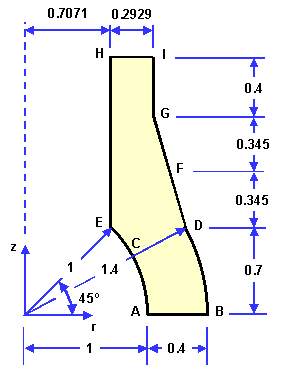

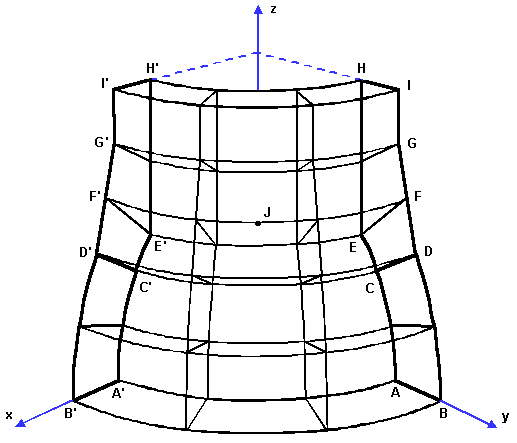

| GEOMETRY | All dimensions in metres |
 |
 |
| LOADING | Linear temperature gradient in the radial and axial direction T °C=(x2 + y2)1/2 + z |
| BOUNDARY CONDITIONS | Symmetry on xz-plane, i.e. zero y-displacement Symmetry on yz-plane, i.e. zero x-displacement Face on xy-plane: zero z-displacement Face HIH'I': zero z-displacement |
| MATERIAL PROPERTIES | Isotropic, E=210 ´
103 MPa, n=0.3 a=2.3 ´ 10-4 / °C |
| ELEMENT TYPES | Solid hexahedra, wedges and tetrahedra |

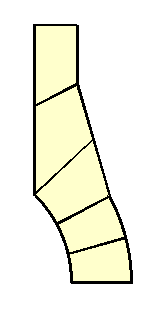

| MESHES | Coarse 5´1´3 |

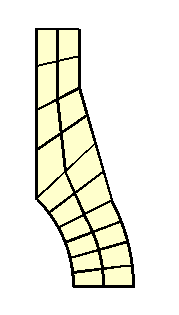

Fine 10´2´3  |
| OUTPUT | Direct stress (szz) at point A | TARGET | -105 MPa (refined axisymmetric) |
Download the files corresponding to the benchmark:
| Data Category | File Description | Provided by |
|---|---|---|
| Geometry specification | ISO 10303-203 class 6 - advanced b-rep 2001-02-28 |
NAFEMS |
| FE specification | ISO 10303-209 class 10 - FE model; loads and boundary conditions; target result |
